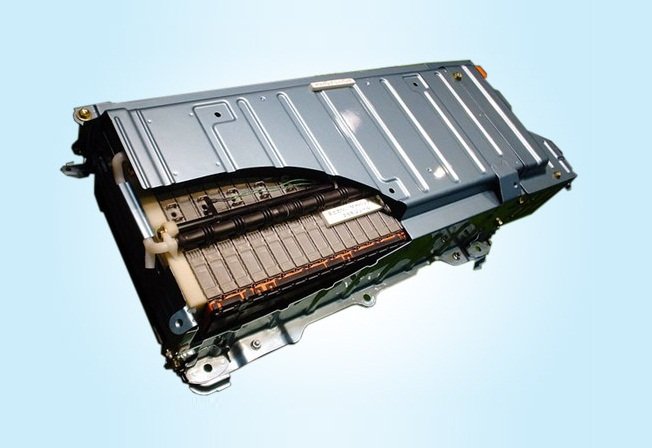

Lithium – Ion Battery For Electric Vehicle
Specification
- BATTERY CONFIGURATION: 48V 30AH
- CAPACITY OF INDIVIDUAL CELL: 3.7V 5000MAH TYPE OF CELL: CYLINDRICAL (26650)
- TOTAL ENERGY DENSITY OF BATTERY: 1440WH
- NOMINAL CAPACITY: 30AH NOMINAL VOLTAGE: 48.1V (STANDARD)
- BATTERY CONFIGURATION: 13S x 6P RECOMMENDED CHARGING CURRENT6A
- RECOMMENDED CHARGING VOLTAGE: 54.6v +/-0.2v OVER CHARGE PROTECTION: 4.25v +/- 0.05V PER CELL
- DISCHARGE CURRENT: 40A MAX
Experimental Capabilities
- PLOT BATTERY CHARGE PROFILE WITH RESPECT TO VOLTAGE PLOT BATTERY CHARGE PROFILE WITH RESPECT TO CURRENT
- PLOT BATTERY STATE OF CHARGE PLOT BATTERY DISCHARGE PROFILE WITH RESPECT TO VOLTAGE
- PLOT BATTERY CHARGE PROFILE WITH RESPECT TO CURRENT VOLTAGE AND CURRENT EVOLUTION DURING DISCHARGE TESTS FOR
- STATIC CAPACITY DETERMINATION. STATE OF CHARGE (SOC) AND CAPACITY EVOLUTION DURING
- DISCHARGE TESTS FOR STATIC CAPACITY DETERMINATION. BATTERY VOLTAGE AND SOC EVOLUTION DURING HPPC PROFILE
- CALCULATE ENERGY DENSITY CALCULATE POWER DENSITY
